Material Handling Systems

Material Handling Systems
We are designing and supply customize mechanical conveyor systems
as per customers requirements, our range of conveyors are :
-----------------------------------------------------------------------------------------------------------
Conveyor useful to Transfer any Material from One point to another point with lesser Man Power or Without Man Power ,it is also called as Material Handling Equipments in this Category Nishi Techno – Sys design & Manufacture Customized Conveyor systems. Our range of Conveyors are :

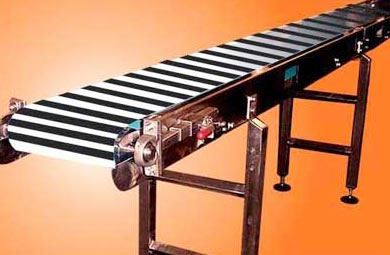

Belt Conveyor :


Useful for conveying Powder, stones, fertilizers, Granules, Minerals, belt conveyor available in Flat Belt Conveyor, Inclined Belt Conveyor, Inspection Belt Conveyor.

Belt Conveyors are used in Packing Depatment, Soap pellet feeding, Powder feeding in Hopper /reactor vessels Loading - Unloading material from Godown / Truck. It is also most commonly used in Ceramic / Cement Industry.

Belt Conveyors are available in Natural / Synthetic Rubbers Belt in 3 ply to 6 ply depend upon applications suitable for capacity in Powder / Granuls material around 200 kgs/hr to 20,000 kgs/hr.
Belt Conveyors
Inclined Belt Conveyors
-----------------------------------------------------------------------------------------------------------

Screw Conveyor :


Screw Conveyors made of SS304 / SS316 or M.S Contact Parts. most of this conveyor useful where total close material handling is require to reduce chances of contamination, this conveyor is having Blades ( Flights ) mounted on Hollow pipe shaft and shaft is connected to direct Gear Motor or with sprockets, Fights are totally covers with shell made of circular or Trough type.
This conveyor is suitable for spped 100 kgs/hr to 5000 kgs/hr.
--------------------------------------------------------------------------------------------

Slat Conveyor :


This Conveyor mostly useful in Pharmaceuticals and Oil / Refinery Industry for Filling, Labeling, Tagging, Printing & Packing lines ,his conveyor is available in Link Slats chain Conveyors made of SS304 or M.S.
Conveyor is running at speed between 1 mtrs/ min. to 3 mts/min.
Slat Conveyor
--------------------------------------------------------------------------------------------
Roller Conveyors :
In this conveyor category there are two types 1) Motorized Roller Conveyors and Gravity Roller Conveyors, useful in Packing Line for Box Packing / Loading of Heavy Materials in to Trucks / Internal Moments of Heavy Bags or Machined Job in Auto Mobile industry.
This conveyors are available in Stainless Steel / M.S.with Powder Coated or Sleeves coated
--------------------------------------------------------------------------------------------
Mechanical / Auto Mobile Trolleys
Nishi Techno-Sys design and Manufacturing Ecofriendly Inter Goods transport Customized Trolleys. Made of SS304 / M.S./Rubber Coated with castor wheels.
